AIR CLEANER SUPPORT GROUP - TC2-G611203

Kioti TRACTOR | CK Series | CK3510SEB

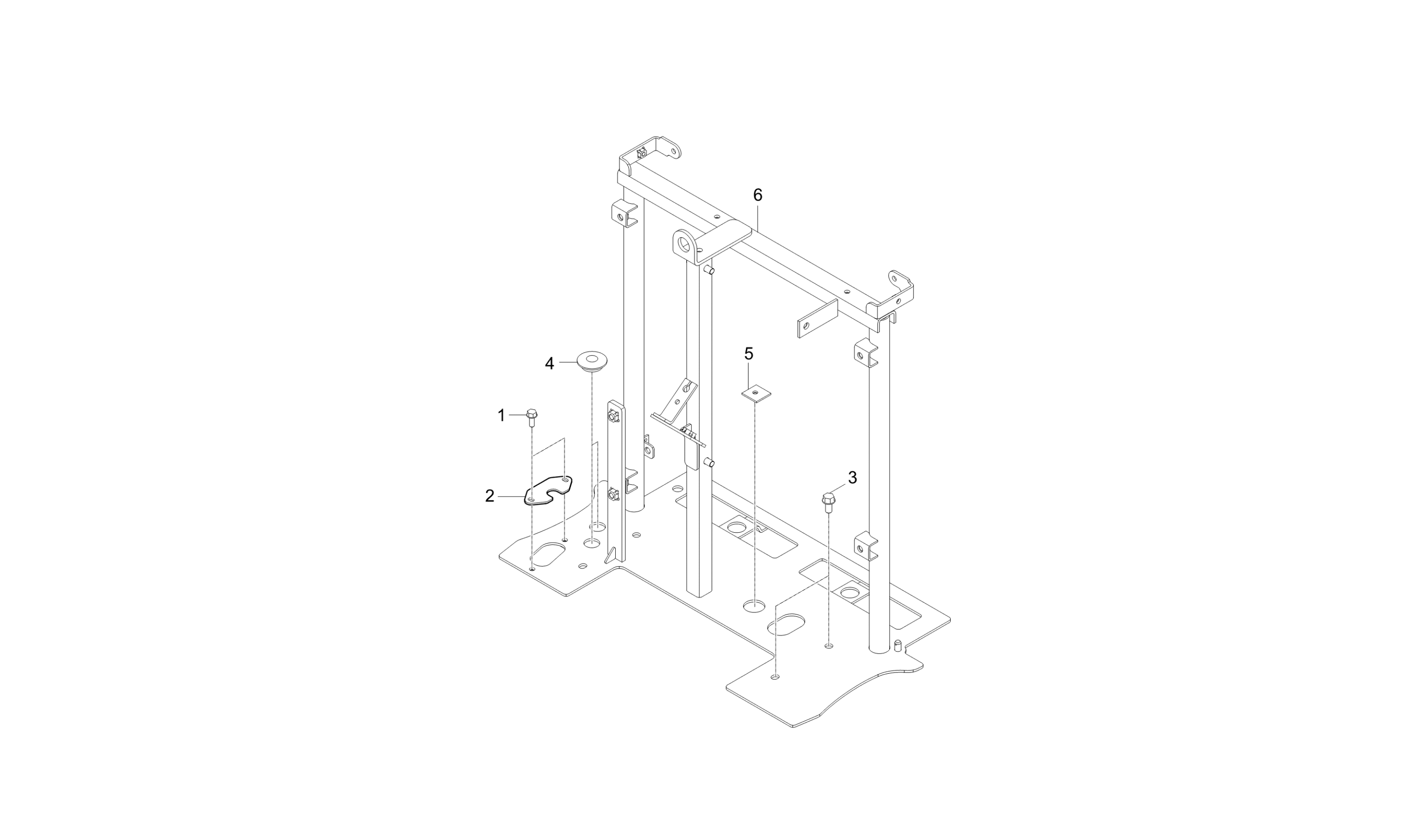

Diagram for AIR CLEANER SUPPORT GROUP - TC2-G611203
  • 1 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50612
    • M6XP1.0
    • 2 shown on diagram
    $1.39
  • 2

    PLATE, GUIDE

    • Part No. T2185-50441
    • T2.3
    • 1 shown on diagram
    $6.49
  • 3
    • Part No. T2185-70491
    • 4 shown on diagram
  • 4

    RUBBER, CUSHION

    • Part No. T4125-50591
    • 2 shown on diagram
    $3.99
  • 5

    SPONGE

    • Part No. T4876-50251
    • 1 shown on diagram
    $6.49
  • 6

    SUPPORT, AIR CLEANER

    • Part No. TC26-0422D
    • Applied Dates Up to 2019-01-13
    • Serial No. Up to VJJ700008
    • * multiple options for #6
    • 1 shown on diagram
    $329.99
  • 6
    • Part No. TC26-0422E
    • Compatibility Interchngable
    • Applied Dates 2019-01-14 and up
    • Serial No. VJJ700009 to WJJ700036
    • * multiple options for #6
    • 1 shown on diagram
