CHECK LINK GROUP - TC2-G682011

Kioti TRACTOR | CK Series | CK3510SEB

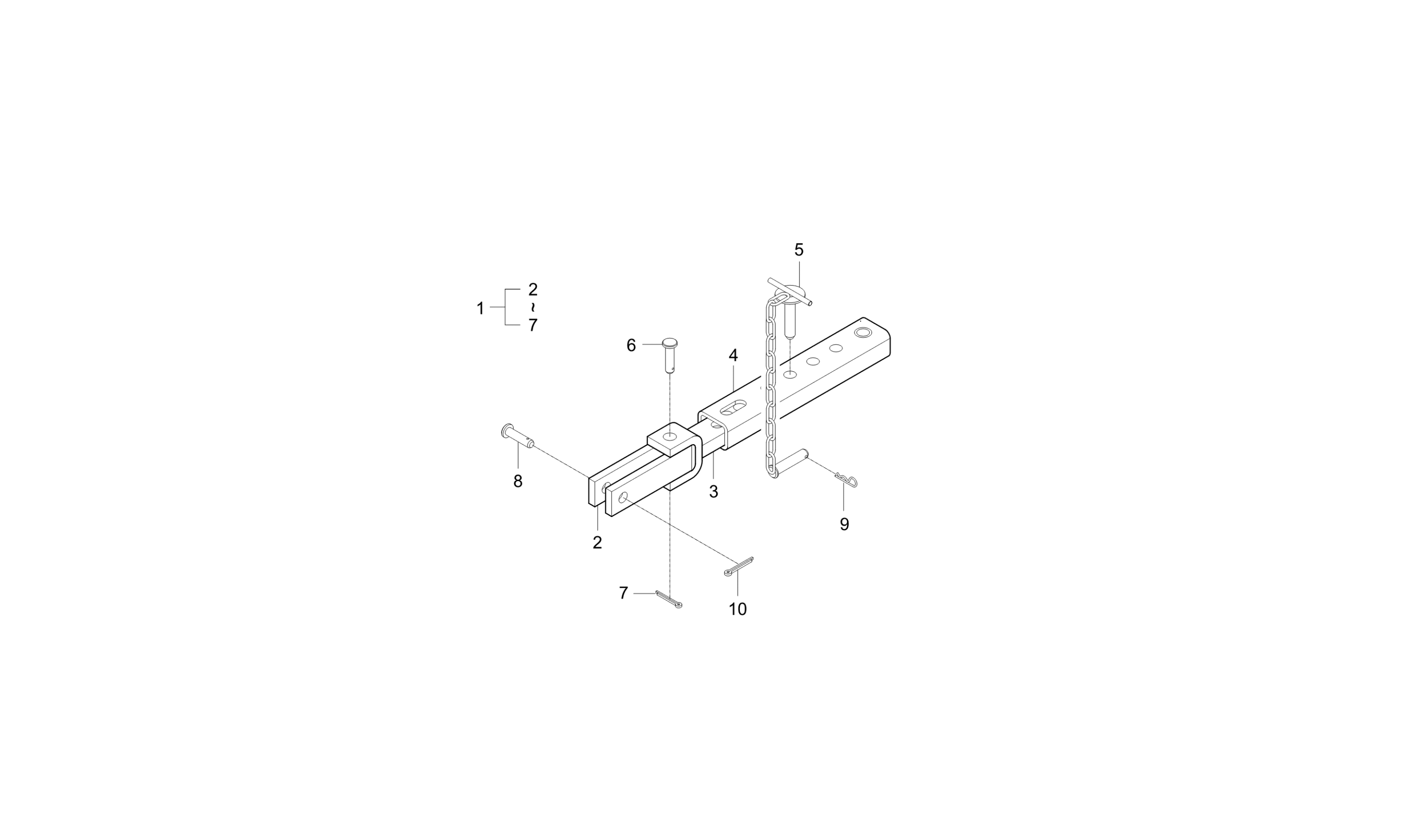

Diagram for CHECK LINK GROUP - TC2-G682011
  • 1

    ASSY, CHECK LINK -RUBBER dnr v

    • Part No. T2615-91118
    • Applied Dates Up to 2017-09-30
    • Serial No. UJJ700001 to TJJ700002
    • * multiple options for #1
    • 2 shown on diagram
    $149.99
  • 1 ASSY, CHECK LINK v

    ASSY, CHECK LINK v

    • Part No. T2615-91119
    • Compatibility New repl old
    • Applied Dates 2017-10-01 and up
    • Serial No. TJJ700003 to WJJ700036
    • * multiple options for #1
    • 1 shown on diagram
    $159.99
  • 2
    • Part No. T2615-91122
    • N
    • * multiple options for #2
    • 1 shown on diagram
  • 2 ASS Y, 1 BRACKET 4-5/8″ overall

    ASS Y, 1 BRACKET 4-5/8″ overall

    • Part No. T2615-91123
    • Compatibility New repl old
    • * multiple options for #2
    • 1 shown on diagram
    $26.99

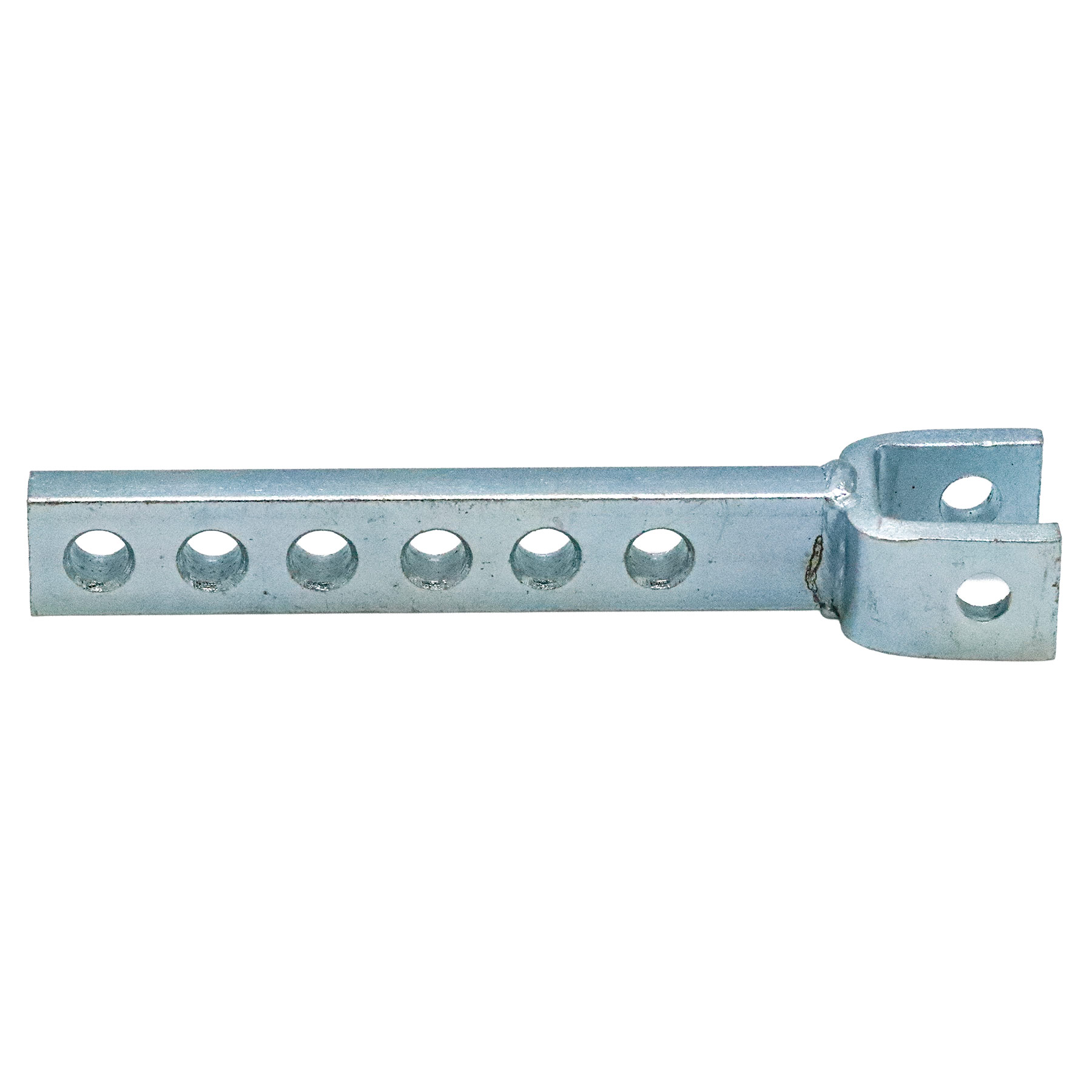

  • 3 ASSY 2 BRACKET 9.25″ overall

    ASSY 2 BRACKET 9.25″ overall

    • Part No. T2615-91133
    • 1 shown on diagram
    $46.99

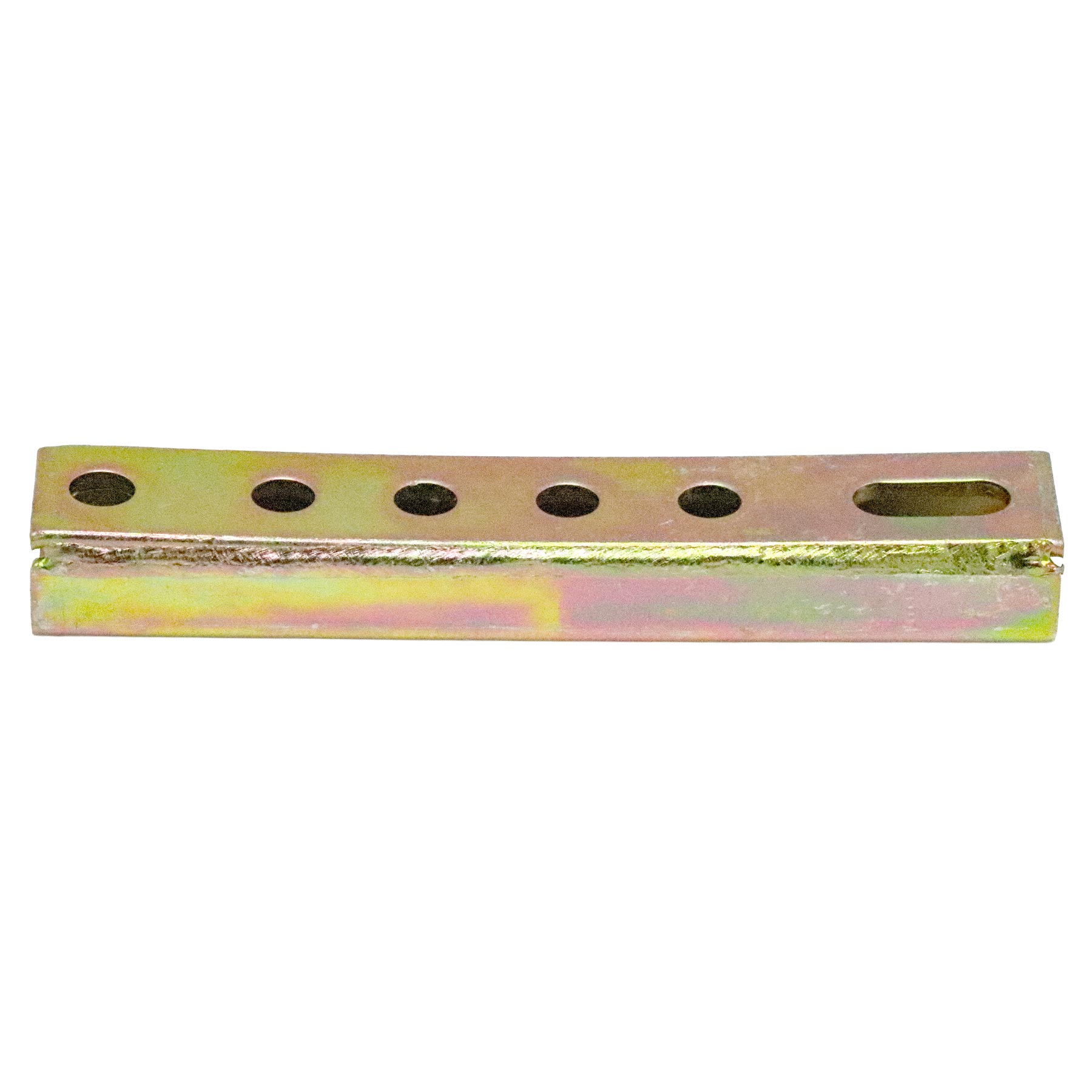

  • 4 ASSY,HOUSING

    ASSY,HOUSING

    • Part No. T2615-91143
    • 1 shown on diagram
    $39.99

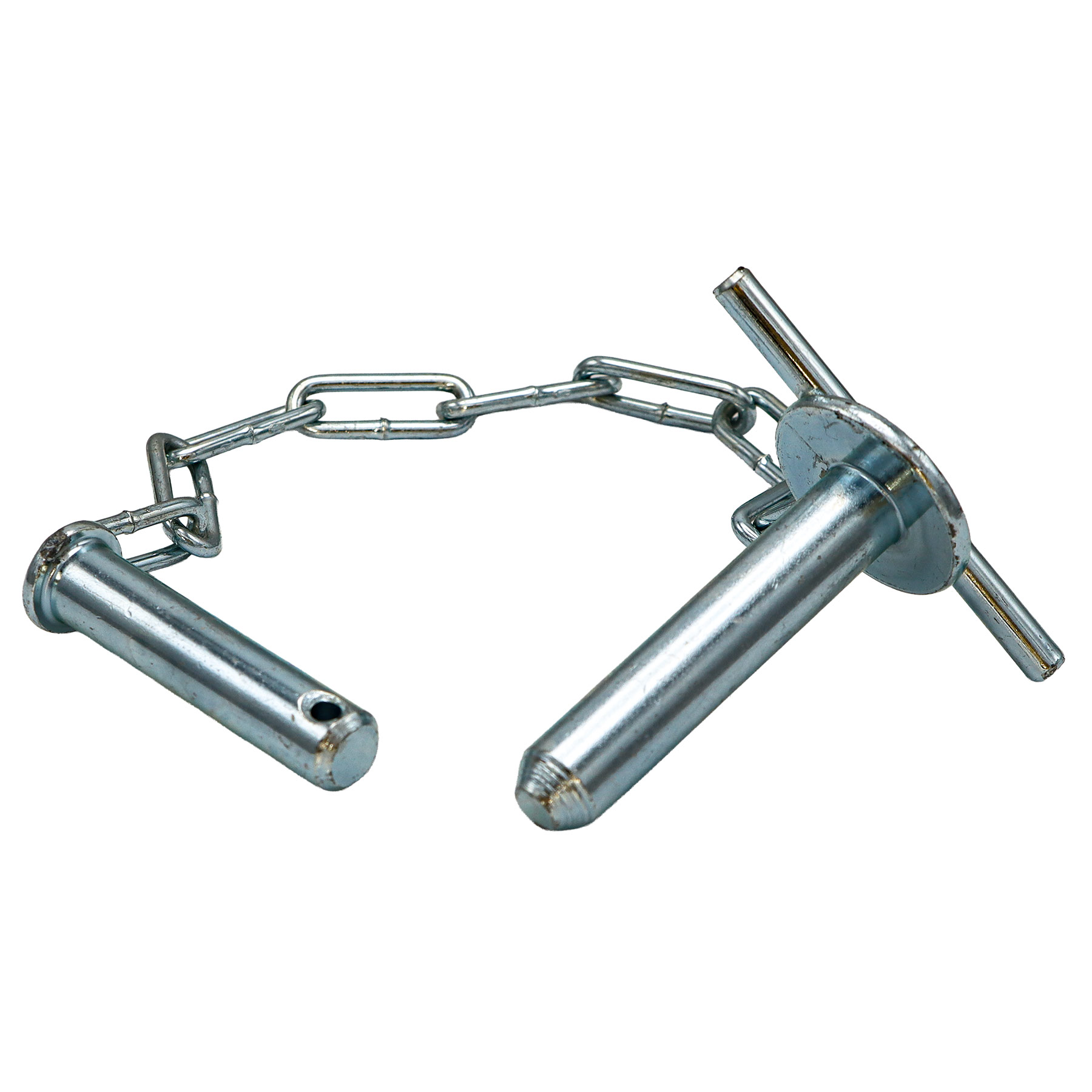

  • 5 ASSY, HOLL

    ASSY, HOLL

    • Part No. T4125-91162
    • 1 shown on diagram
    $34.99
  • 6 Pin, Joint M12x65mm

    Pin, Joint M12x65mm

    • Part No. 05122-51265
    • DIA12*65
    • 1 shown on diagram
    $4.99

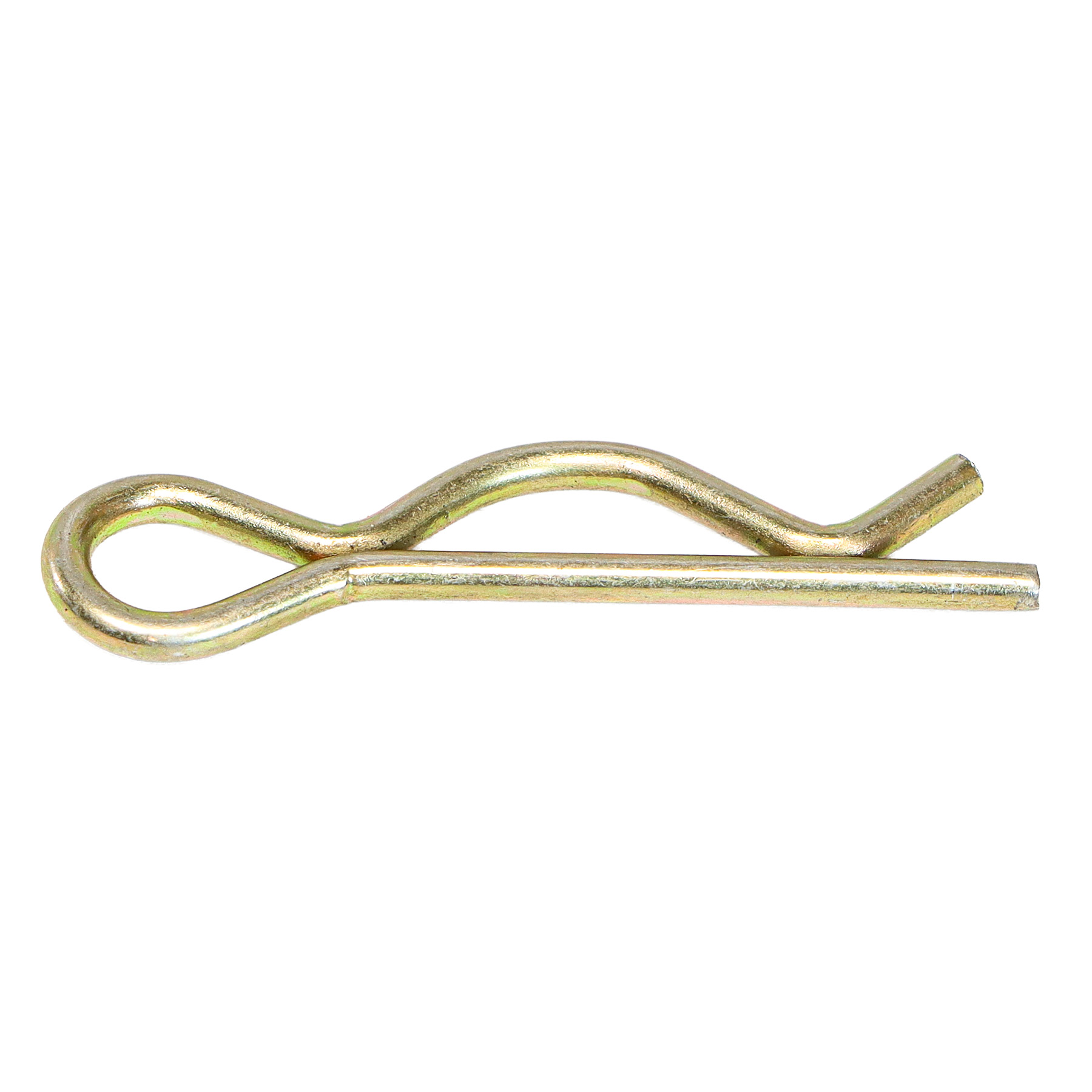

  • 7 PIN,SNAP

    PIN,SNAP

    • Part No. 05525-51200
    • 1 shown on diagram
    $1.29
  • 8 Pin, Check Chain M12x45

    Pin, Check Chain M12x45

    • Part No. 32353-7189-3TP
    • 2 shown on diagram
    $11.99
  • 9 PIN,SNAP

    PIN,SNAP

    • Part No. 05525-51200
    • 2 shown on diagram
    $1.29
  • 10 PIN, SPLIT

    PIN, SPLIT

    • Part No. 05511-50435
    • DIA4
    • 2 shown on diagram
    $0.56
